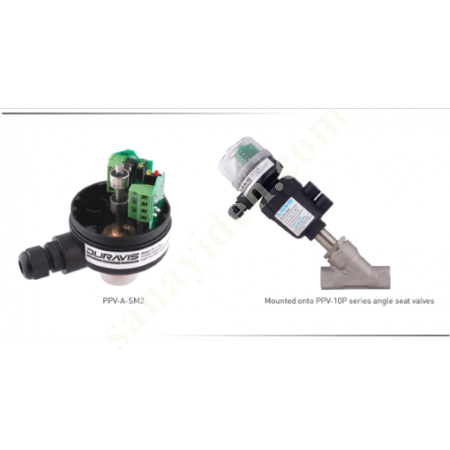

DURAVIS PPV-A-SM2 Valve Position Indicator (For Open and Close Signal) Switch Type: 2 x SPDT Monitoring Mode: Leds and electrical signal Led Colors: Green > Valve Open, Red > Valve Closed Orange > Energy Led Valve Mounting: M26 x 1.5 (G 1/4“, with M16 x 1.5 adapter) Working Range: 10 - 30 mm Description: DURAVIS PPV-A-SM2 valve position indicator, by connecting to pneumatic diaphragm valves and pneumatic piston valves; It gives an electrical feed signal with the closed and open position of the valve. In addition to having two mechanical switches inside, there are different red and green colored LEDs for visual monitoring. Also, this accessory is called piston valve limit switch box or box. Switch Type: 2x Mechanical Switch (2xSPDT) Monitoring Mode: Leds and electrical signal Led Colors: Green > Valve Open, Red > Valve Closed Orange > Energy Led Model No / Order Coding: Model Switch Type Current Class Voltage Supply Output Type Material PPV- A-SM2 Mechanical 2XSPDT <5A 12 - 48 VDC Contact; N.Open & N.Closed ABS and PC *PPV-A-SM2 piston valve limit switch box is directly connected to PPV-10P series pneumatic piston valves. Mechanical Properties: Case: ABS Cover: PC Cable: M16 x 1.5, PA External and Internal Threaded Parts: Brass and Stainless Steel Valve Mounting: With M26 x 1.5 adapter Operating Range: Linear 10-30 mm Electrical Specifications: Connection Cable: Standard, diameter 5-7mm Power Supply: 12 - 48 VDC Power Consumption: < 37.5mA (48V DC) Output Type: Contact; N.Open & N.Closed Allowable Load: < 5A per contact Operating Conditions: Ambient Temperature: -20°C....+60°C Ambient Humidity: < 80%, no condensation Protection Class: IP65, cable and The union must be tightly tightened. Area of ​​Use: It is used in cases where open and closed signals are needed in pneumatic piston valves and pneumatic diaphragm valves and visual open-closed position monitoring is required.
