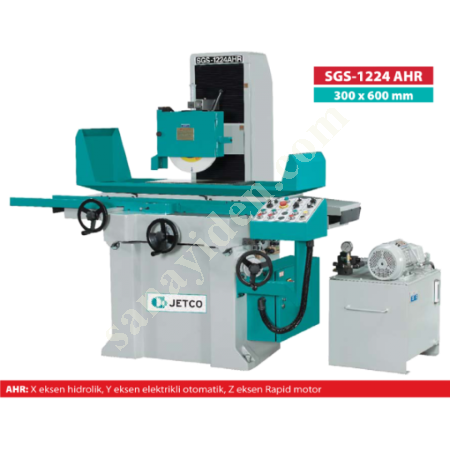

JETCO / SGS-1224AHR SURFACE GRINDING

JETCO / SGS-1224AHR SURFACE GRINDING, Knife Sharpening-Grinding
JETCO / SGS-1224AHR SURFACE GRINDING, Knife Sharpening-Grinding

Technical specifications Unit SGS-1020AHR Working surface of the table mm 300x600 Maximum grinding surface mm 304x609 Maximum horizontal movement of the table mm 690 Maximum transverse movement of the table mm 332 Distance between the table surface and the spindle mm 600 Table speed meter/min 6~25 Automatic transverse feed of the seat mm 0~9 Vertical travel (1 pitch) mm 0.01 Vertical travel (1 turn) mm 2 Transverse advance travel (1 pitch) mm 0.01 Transverse advance travel (1 turn) mm 4 Linear feed travel setting mm 50~609 Transverse advance travel setting mm 0~304 Spindle motor HP 5 x 4P Hydraulic pump motor HP 2 x 6P Transverse feed motor HP 1/5 x 6P Down feed motor HP 1/5 x 6P Grinding wheel mm 355 x 32 x 127 Spindle speed rpm 1450 Coolant motor HP 1/8. Main collector motor HP 1/2 x 2P Net weight kg 1850 Gross weight kg 2150 Package dimensions mm 2260 x 1740 x 2210
