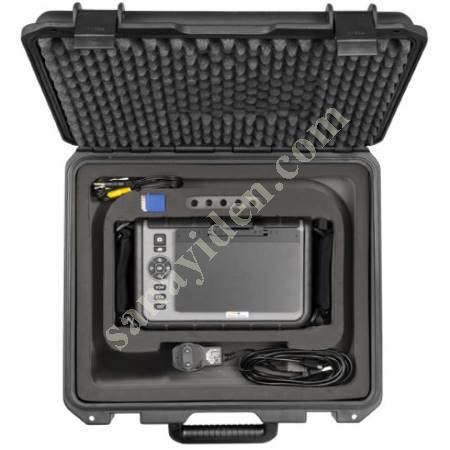

PCE-VE 1034N-F BOROSCOPE

PCE-VE 1034N-F BOROSCOPE, Test And Measurement Instruments
PCE-VE 1034N-F BOROSCOPE, Test And Measurement Instruments
PCE-VE 1034N-F BOROSCOPE, Test And Measurement Instruments
PCE-VE 1034N-F BOROSCOPE, Test And Measurement Instruments
PCE-VE 1034N-F BOROSCOPE, Test And Measurement Instruments
PCE-VE 1034N-F BOROSCOPE, Test And Measurement Instruments
PCE-VE 1034N-F BOROSCOPE, Test And Measurement Instruments
PCE-VE 1034N-F BOROSCOPE, Test And Measurement Instruments
PCE-VE 1034N-F BOROSCOPE, Test And Measurement Instruments
PCE-VE 1034N-F BOROSCOPE, Test And Measurement Instruments

Warning: It is recommended that you do not make any payment (deposit, advance, etc.) before visiting the actual area (workplace, shop, etc.) where the advertiser offers his goods and services to the relevant parties and before receiving the goods and services you want to buy.

Features - 3 m / 9.84' endoscope cable with 2-way camera head - Camera head diameter: 4.5 mm / 0.18 " - Storage of photos and videos - 8 GB memory card included. Technical Specifications Screen 7" LCD (800 x 480) Image Resolution 640 x 480 JPEG Video Recording 640 x 480 MPEG (with sound recording) Drop Test 1 m / 3.3' Power Supply Li-Ion rechargeable battery Interface USB Memory on SD card (maximum 32 GB) AV Output NTSC / PAL Audio Input Built-in Microphone Brightness Adjustment 10-stage adjustable on the main unit Operating Time per Battery Charge 5 hours Battery Charge Time 3 hours Charge Temperature +10 ... +40 °C / +50 ... +104 °F Environmental Conditions 0 ... +60 °C / + 32 ... +140 °F Storage Temperature 0 ... +60 °C / +32 ... +140 °F Protection Class IP57 Dimension 240 x 154 x 47 mm / 9.4" x 6" x 1.9" Weight 1.3 kg / 2.9 lb Cable Length 3 m / 9.84' 2-Way Borescope Cable 90° Cable Controller Functions Lighting improvements 360° rotation in 90° increments Changing lighting in mirror use Kame ra head locking Key lock Illumination 5 white LEDs on camera head Camera Head Length Approx. 13 mm / 0.5 " Camera Head Material Stainless Steel Camera Head Diameter 4.5 mm / 0.18 " Resolution VGA (640 x 480) Depth of Field 10 ... 60 mm / 0.4" ... 2.4" Environmental Conditions -20 ... +60 °C / -4 ... +140 °F Protection Class IP67 Video Output NTSC Viewing Angle 135° Control Unit Dimensions 228 x 35 x 53 mm / 9" x 1.4" x 2.1" Weight Approx. 400 g / Approx. 14 oz. Delivery Contents 1 x Borescope PCE-VE 1034N-F, 1 x SD Memory Card (8 GB), 1 x Cleaning Kit for Camera Head, 1 x USB Cable, 1 x Power Supply for Monitor, 1 x Video Cable, 1 x Sturdy Plastic Box, 1 x User Manual.
