VACUUM SOLENOID VALVE (DIAMETER:3/8'' BAR:-1-3)

VACUUM SOLENOID VALVE (DIAMETER:3/8'' BAR:-1-3), Valves
VACUUM SOLENOID VALVE (DIAMETER:3/8'' BAR:-1-3), Valves

Warning: It is recommended that you do not make any payment (deposit, advance, etc.) before visiting the actual area (workplace, shop, etc.) where the advertiser offers his goods and services to the relevant parties and before receiving the goods and services you want to buy.

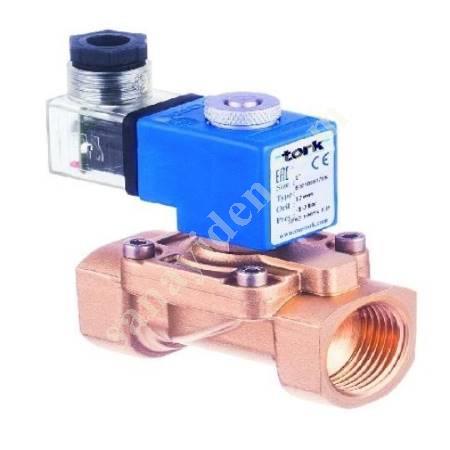

S3010 Series Vacuum Solenoid Valve (DIA:3/8"-BAR:-1-3) PRODUCT DESCRIPTION S3010 SERIES SOLENOID VALVE FOR VACUUM LINES Application: Air, Water, Gas, chemical fluids, hot water, closed circuit systems suction lines, vacuum lines, low pressure lines (it is recommended to put a filter at the valve inlet for dirty fluids) Size : 1/8", 1/4" Direct Drive, 3/8"…1" Pilot Operated, BSP (NPT on Request) Pressure : 0…-1 Bar (Max. 3Bar) Sleeve , Core : Stainless Body : Brass Diaphragm : NBR Temperature : -10°C…80 °C Position : Normally Closed Coil Voltage : 230V, 110V , 48V, 24V , 12V AC ; 110V , 48V , 24V , 12 V DC : C40 Series coil is used in sizes between 1/8"...1". C50 Series coil is used in sizes between 11/4" and 2" Protection Class: IP65 (Exproof optional) vacuum solenoid valve prices,
