DAMPF 38-7 G 52 MM 38 MM 6 BAR 7 MM

DAMPF 38-7 G 52 MM 38 MM 6 BAR 7 MM, Steam Hoses
DAMPF 38-7 G 52 MM 38 MM 6 BAR 7 MM, Steam Hoses

Warning: It is recommended that you do not make any payment (deposit, advance, etc.) before visiting the actual area (workplace, shop, etc.) where the advertiser offers his goods and services to the relevant parties and before receiving the goods and services you want to buy.

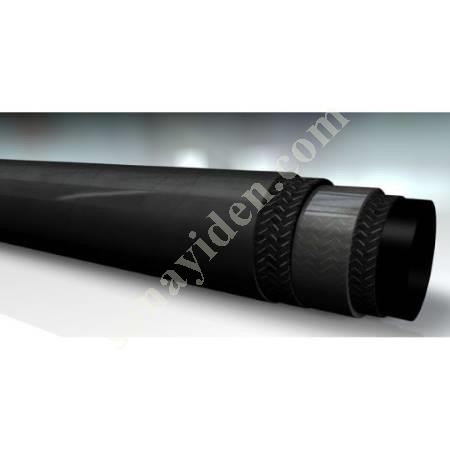

DAMPF 38-7 G Steam Hose Inner diameter 38 mm Outer diameter 52 mm Unit MTR DAMPF38-7G Inner diameter 38 mm Outer diameter 52 mm Unit MTR Bend radius min. 230 mm Coil length 40 m only per spool - Features Area of Use Hot water or saturated steam applications Special Features High temperature, friction and ozone resistance Operating pressure Saturated steam max. 6 bar hot water max. 18 bar Inner Layer SBR / EPDM, conductive Reinforcement Layer two textile inserts wrapped Outer Layer SBR / NBR Temperature range +164°C (Saturated steam); +95°C (hot water) Color black Fluids hot water Steam
