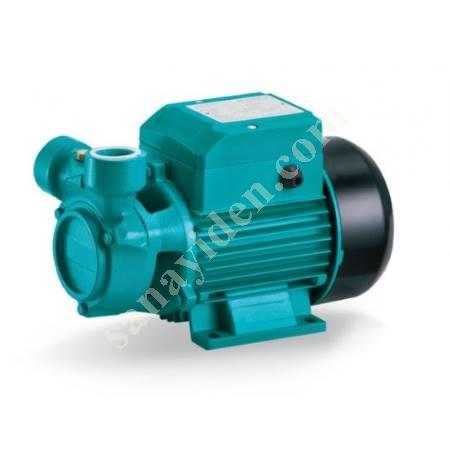

LEO AQM60 PREFERICAL PUMP WITH FRICTION FAN SIDE OUTPUT 0.8 H-P

Friction Fan Pump Friction fan pump can be used to transfer clean water or other liquids similar to water in physical and chemical properties. It is suitable for lifting water from the well, sprinkling the garden, increasing the pressure of the flowing water and supporting equipment. Friction Fan Pump Features Cast iron pump body and a special anti-rust treatment for support Propeller Anti-block system Brass impeller AISI 304 shaft Max. liquid temperature: + 40 ℃ Max. Suction: 8 m 0.6kW 0.8Hp Input:1"(25mm) Output:1"(25mm) Pump Motor with Friction Fan Features C & U bearing Copper winding Thermal protector for internal single phase motor Insulation class: F Protection class: IPX4 Max. ambient temperature: + 40 ℃ MODEL POWER m³/h 0 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2 KW HP l/min 0 5 10 15 20 25 30 35 40 AQm60 0.37 0.8 H(m) 60 55 50 40 35 30 25 20 10 NO SECTION PART 1 Pump Body HT200 2 Impeller Brass 3 Mechanical seal Carbon / Ceramic 4 O-ring NBR 5 Support HT200 6 Bearing - 7 Impeller - 8 Fan cover 08F 9 Fan PP 10 Rear Cover ZL102 11 Capacitor - 12 Terminal Box ABS 13 Terminal Panel PC 14 Stator - 15 Filling Plug Hpb59-1 Voltage : 220 Volt (Monophase) Max. Flow rate m3/h: 0-5 m3/h Max. Height mSS: 41-50 mss Inlet Size: 1" - 25 mm Output Size: 1" - 25 mm Revolution R/D: 2900 d/d Suction Depth: 6 Meters



LEO AQM60 PREFERICAL PUMP WITH FRICTION FAN SIDE OUTPUT 0.8 HP 45 MSS 45 L/D
