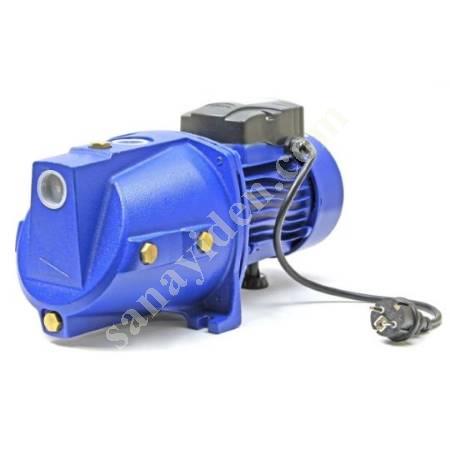

WINPO WNP 200M CASTING BODY JET PUMP 62 MSS 4.2 M³/H

WINPO WNP 200M CASTING BODY JET PUMP 62 MSS 4.2 M³/H,
WINPO WNP 200M CASTING BODY JET PUMP 62 MSS 4.2 M³/H,

It is used in booster groups, industrial machines, vineyard and garden irrigation applications. Fan Bronze, Manometric suction depth 8 m., Transferred liquid temperature +40°C Maximum pressure 6.2 bar, Pumps 1 m. Cable, Pumps are thermal protected 1- Pump Body Casting 2- Motor Cover Cast Iron 3- Fan Bronze 4- Motor Shaft AISI 316 Stainless Steel 5- Mechanical Seal 6- Bearing 7- Capacitor 8- Motor HP : 2 HP kW : 1.5 kW Voltage : 220 Volt (Monophase) Max. Flow rate m3/h: 0-5 m3/h Max. Height mSS: 51-75 mss Inlet Size: 1.1/4" - 32 mm Output Size: 1" - 25 mm Revolution R/D: 2900 d/d Suction Depth: 9 Meters

WINPO WNP 200M CASTING BODY JET PUMP 62 MSS 4.2 M³/H SINGLEPHASE(220)
