PAN MACHINE

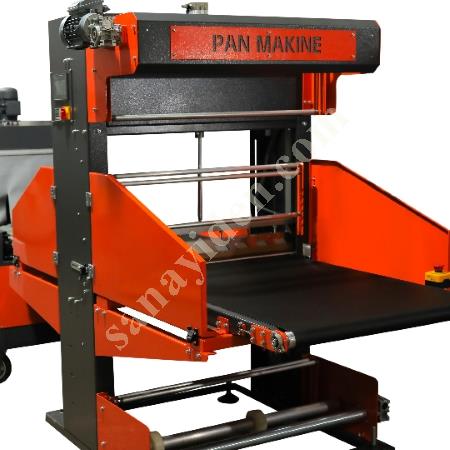

MACHINE CODE: AUTOMATIC SHRINK PACKAGING MACHINE(700x500x1500) CONTROL PANEL: PLC control touch color screen (DELTA PLC) CAPACITY / CAPACITY: 10-14 packages / min (depends on the size to be packaged) ELECTRIC SUPPLY / REQUIRED ELECTRICITY – 3 Ph:380 , 50-60 Hz. AVERAGE POWER / ELECTRIC CONSUMPTION: 13-16kw/h. AIR CONSUMPTION AMOUNT / MAX. AIR CONSUMPTION: 200 Lt/min. ADHESIVE JAW LENGTH / SEALING BAR LENGTH:700 mm. TEFLON COATED ALUMINUM HOT JAW Cutting unit and product feeding unit synchronization can be adjusted precisely thanks to PLC CONTROL and cutting unit time adjustment is made on PLC CONTROL SCREEN. BONDING TIME ADJUSTMENT / SEALING TIME ADJUSTMENT:0-5 sec. SHIRNK MACHINE MOTOR BRAND / SHRINK MACHINE ENGINE BRAND shrink machine conveyor motor is GAMAK brand and speed controlled. Shrink machine tunnel heat circulation motor is MIKSAN brand. SHRINK TUNNEL HEAT ADJUSTMENT / SHRINK TUNNEL HEAT ADJUSTMENT 0-50-250°C digital thermostat PID control SHRINK MACHINE TUNNEL CONVEYOR DETAIL/SHRINK MACHINE TUNNEL CONVEYOR DETAIL Shrink machine conveyor will be made of transmission shaft and it will be fed with ½ chain. It has speed control feature. NYLON WINDING UNIT FEATURE/FEATYRE NYLON COIL UNIT: Lower and upper nylon-mounted drums will be motor-reinforced and will automatically adjust the desired size of nylon while the product passes through the jaw with the boom discharge system. (motors are gamak brand) inlet conveyor. MAX. FILM THICKNESS / MAX. FILM THICKNESS: 0.30-170 micron SUITABLE FILM / SUITABLE FILM: PE Polyethylene/Polyethylene OTHER FEATURES/OTHER FEATURES: It is a disassembled product Tunnel sheet thickness 2mm Nylon cutting unit sheet thickness 2.5mm Pack counter feature Since the nylon cutting system is spring, it is faultless in the cutting and sewing system. function and stainless protection plate
