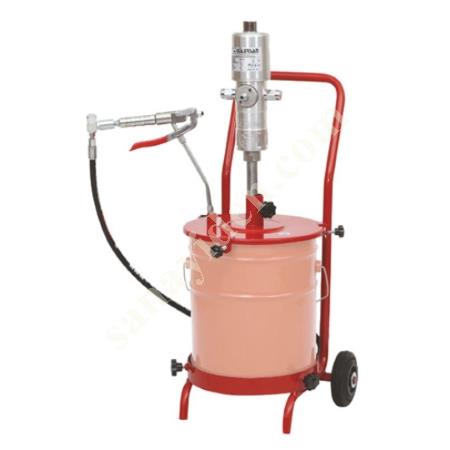

The 2226 model is a heavy-duty air-operated grease pump with a 70:1 pressure ratio, designed for long-distance and high-pressure lubrication. It is engineered to mount directly on 16 kg standard grease drums, making it highly portable and easy to use in field conditions.
The pump includes a steel-reinforced hydraulic hose, Ø75 mm piston, and Z-swivel joint, providing both durability and operator comfort.
The follower plate and spring compress the grease efficiently, ensuring smooth feed of high-viscosity lubricants, even in cold environments.
⚠️ Shipped without grease drum.
Model: 2226
Operation Type: Air-operated
Working Pressure: 6 – 8 Bar
Pressure Ratio: 70:1
Output: 1100 gr/min
Capacity: 16 kg (standard grease drum)
Hose Length: 2 m (R2 1/4″)
Package Dimensions: 40 × 40 × 93 cm
Weight: 15.6 kg
Warranty: 36 Months
2305 Grease Gun
2405 Z Swivel Joint
2045 Grease Nozzle
2624 Follower Plate
2723 Follower Plate Spring
For best performance and extended service life, always use filtered and lubricated air. Optional accessories are available to adapt the pump to different applications.
