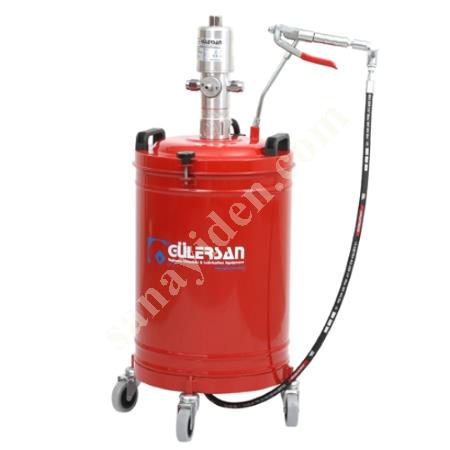

GÜLERSAN LUBRICATION EQUIPMENT 2230 AIR OPERATED GREASE PUMP 30 KG

🔧 Professional Description for Technical Catalog

Why Choose the 2230 Air Operated Grease Pump?

The 2230 model offers a 70:1 pressure ratio and a 30 kg grease capacity, making it the ideal solution for long-distance and high-pressure lubrication applications. Designed for durability and heavy-duty use, it performs reliably even under tough industrial conditions.

Thanks to its four swivel wheels, the pump is easy to move. It includes a steel-reinforced hydraulic hose, a Ø75 mm piston, and a Z-swivel joint for greater control and convenience.

The follower plate and compression spring press the grease tightly inside the reservoir, ensuring smooth flow even with high-viscosity lubricants or in cold climates.

Technical Specifications

• Model: 2230

• Operation Type: Air-operated

• Working Pressure: 6 – 8 Bar

• Pressure Ratio: 70:1

• Output: 1100 gr/min

• Capacity: 30 kg

• Hose Length: 2 m (R2 1/4″)

• Package Dimensions: 40 × 40 × 93 cm

• Weight: 16.54 kg

• Warranty: 36 Months

Delivery Contents

• 2305 Grease Gun

• 2405 Z Swivel Joint

• 2045 Grease Nozzle

• 2625 Follower Plate

• 2725 Follower Plate Spring

Usage Recommendation

To maximize pump performance and extend service life, filtered and lubricated air is strongly recommended. Optional accessories are available to enhance the pump’s functionality for specific applications.
