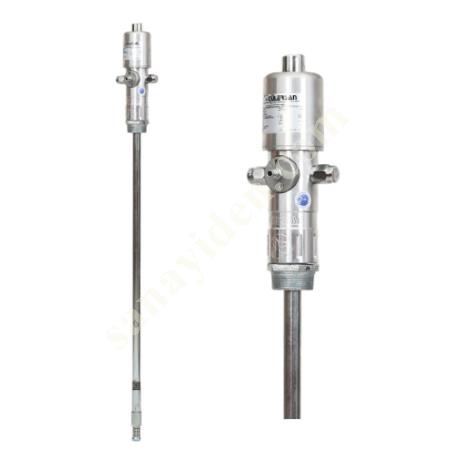

The 2400 model is a barrel-type air-operated grease pump with a 70:1 pressure ratio, designed specifically for 185 kg standard grease drums. It is ideal for long-distance, high-pressure lubrication in demanding industrial environments.
Easily mounted with the help of a drum support block (barrel wedge), the pump features a Ø75 mm piston for reliable output. The system uses a follower plate and weight to press the grease tightly inside the barrel, ensuring consistent feed even with high-viscosity greases and in cold conditions.
The pump does not include a hose by default, allowing the user to select accessories based on system requirements.
Model: 2400
Operation Type: Air-operated
Working Pressure: 6 – 8 Bar
Pressure Ratio: 70:1
Output: 1100 gr/min
Capacity: 185 kg (standard drum)
Outlet: 1/8″ NPT
Package Dimensions: 13 × 14 × 128 cm
Weight: 7.25 kg
Warranty: 36 Months
2406 I-Type Swivel Joint
0106 Drum Support Block
⚠️ Hose and accessories such as follower plate and weight are sold separately.
For best performance and longer service life, always use filtered and lubricated air. The modular system design allows custom configurations to suit various lubrication needs.
