GÜLERSAN LUBRICATION EQUIPMENT 6060 AIR OPERATED WASTE OIL SUCTION CHANGER 60 LT

🔧 Technical Catalog Description

Why Choose the 6060 Waste Oil Extractor (Without Funnel)?

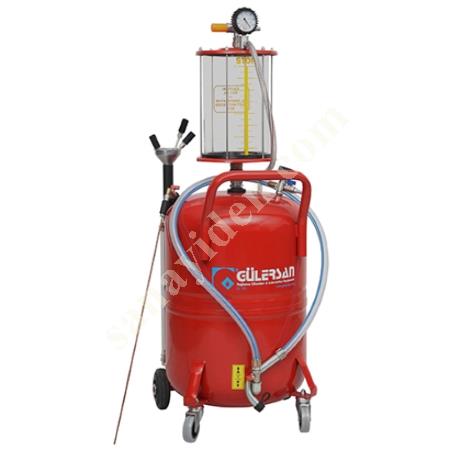

The 6060 model is a pneumatic vacuum oil suction machine designed for use in workshops with compressed air systems.
It draws used oil from the engine sump into a 9-liter glass chamber, then stores it in a 60-liter main tank.

• The transparent graduated glass allows users to monitor oil volume and quality.

• Double-lipped seals on both ends of the glass ensure leak-proof performance.

• Metal bars surrounding the chamber provide robust protection against impact.

• The system operates without the need for continuous air connection.

• The oil level indicator on the tank makes it easy to monitor the fill level.

• Safety valve protects against overpressure.

• Equipped with two fixed and two swivel casters for easy mobility.

Includes a set of 5 oil suction dipsticks in different diameters.
Recommended oil temperature: 70° – 80°C.
⚠️ Not suitable for corrosive or flammable liquids.

Technical Specifications

• Model: 6060

• Operation Type: Pneumatic

• Working Temperature: 60 – 80 °C

• Working Pressure: 6 – 8 Bar

• Discharge Pressure: 0.5 Bar

• Capacity: 60 + 9 L (Tank + Glass Chamber)

• Hose Length: 1.5 m

• Hose Size: 10 × 16 mm

• Package Dimensions: 48 × 55 × 122 cm

• Weight: 26.80 kg

• Warranty: 36 Months

Delivery Contents

• 6095 Oil Suction Dipstick Set (5 pieces)
