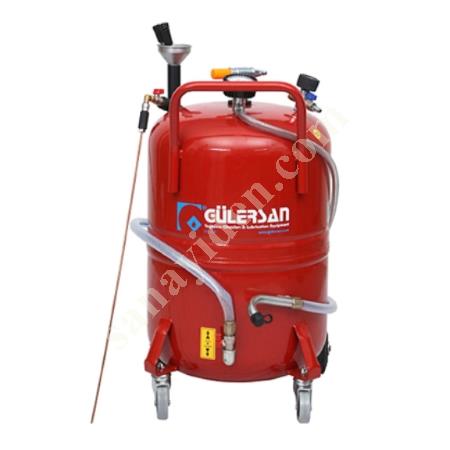

GÜLERSAN LUBRICATION EQUIPMENT 6100 WASTE OIL CHANGER EXTRACTOR 80 LT

🔧 Technical Catalog Description

Why Choose the 6100 Waste Oil Extractor (Without Funnel)?

The 6100 model is designed to extract used engine oil from hard-to-reach areas and collect it directly into the 80-liter main tank using compressed air.

• Oil quantity can be tracked from the level indicator on the tank.

• The system operates without needing constant air connection.

• Equipped with two fixed and two swivel casters for smooth mobility.

• Waste oil can be discharged using compressed air.

• A safety valve ensures protection against excess air pressure.

• Includes a set of 5 oil suction dipsticks (model 6095) of different diameters.

⚠️ Recommended oil temperature: 70 – 80 °C
⚠️ Do not use with corrosive or flammable liquids.

Technical Specifications

• Model: 6100

• Operation Type: Pneumatic

• Operating Temperature: 60 – 80 °C

• Operating Pressure: 6 – 8 Bar

• Discharge Pressure: 0.5 Bar

• Capacity: 80 L

• Hose Length: 1.5 m

• Hose Size: 10 × 16 mm

• Package Dimensions: 48 × 50 × 104 cm

• Weight: 24.6 kg

• Warranty: 36 Months

Delivery Contents

• 6095 Oil Suction Dipstick Set (5 pieces)
