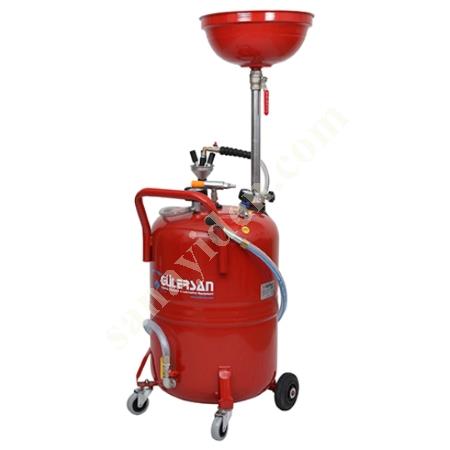

GÜLERSAN LUBRICATION EQUIPMENT 6150 WASTE OIL CHANGER EXTRACTOR WITH FUNNEL 80 LT

🔧 Technical Catalog Description

Why Choose the 6150 Oil Suction Pump with Funnel?

The 6150 model is designed for fast and efficient extraction of used engine oil from difficult-to-reach areas, using air pressure. The system collects oil directly into an 80-liter main tank.

• The oil level can be monitored from the tank's level indicator.

• Operates without needing constant air connection.

• The telescopic funnel allows oil to be drained directly by removing the drain plug when the vehicle is lifted.

• High maneuverability with two fixed and two swivel wheels.

• Waste oil is discharged using compressed air.

• A safety valve ensures protection against excessive air pressure.

• Supplied with a set of 5 oil suction dipsticks (6095) and oil drain funnel (7902).

⚠️ Recommended oil temperature: 70 – 80 °C
⚠️ Do not use with corrosive or flammable liquids.

Technical Specifications

• Model: 6150

• Operation Type: Pneumatic

• Operating Temperature: 60 – 80 °C

• Operating Pressure: 6 – 8 Bar

• Discharge Pressure: 0.5 Bar

• Capacity: 80 L

• Hose Length: 1.5 m

• Hose Size: 10 × 16 mm

• Package Dimensions: 48 × 50 × 104 cm

• Weight: 28.4 kg

• Warranty: 36 Months

Delivery Contents

• 6095 Oil Suction Dipstick Set (5 pieces)

• 7902 Oil Drain Funnel
