GÜLERSAN LUBRICATION EQUIPMENT 6500 WASTE OIL CHANGER EXTRACTOR WITH FUNNEL 80 LT

🔧 Technical Catalog Description
Why Choose the 6500 Oil Extractor with Funnel?

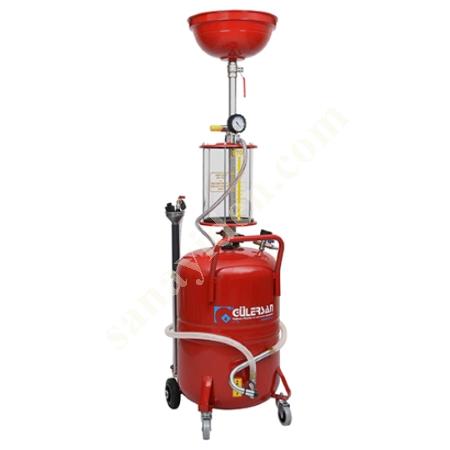

The funnel-equipped oil suction machine collects dirty oil from the crankcase into the glass chamber using air pressure. You can monitor the extracted oil volume through the graduated scale on the glass. This product offers a 9-liter glass section and an 80-liter tank capacity. Double-lipped seals at the top and bottom of the glass ensure leak-proof operation. Additionally, metal rods surrounding the glass section offer protection against impacts.
This funnel-type vacuum oil extractor operates without requiring a continuous air connection. It features high mobility with two fixed and two swivel wheels. The product includes five oil suction probes of varying diameters. You can monitor the tank’s fill level using the level indicator rod on the tank. Waste oil in the tank can be discharged via air pressure. The safety valve on the tank provides protection against excessive air pressure.
Therefore, the oil temperature should be maintained between 70° – 80°C. Do not use the device with corrosive or flammable liquids. Lastly, with the help of the telescopic funnel, you can lift the vehicle on a car lift, remove the crankcase plug, and perform oil drainage that way as well.

📘 User & Maintenance Manual

Technical Specifications

• Model: 6500

• Operation Type: Air Operated

• Working Temperature: 60 – 80 °C

• Operating Pressure: 6 – 8 Bar

• Discharge Pressure: 0.5 Bar

• Capacity: 80 + 9 Lt

• Hose Length: 1.5 m

• Hose Size: 10×16 mm

• Package Dimensions: 48 × 55 × 122 cm

• Weight: 32.6 kg

• Warranty: 36 Months

Delivery Contents

• Oil Suction Probe Set – 6095

• Waste Oil Drain Funnel – 7902
