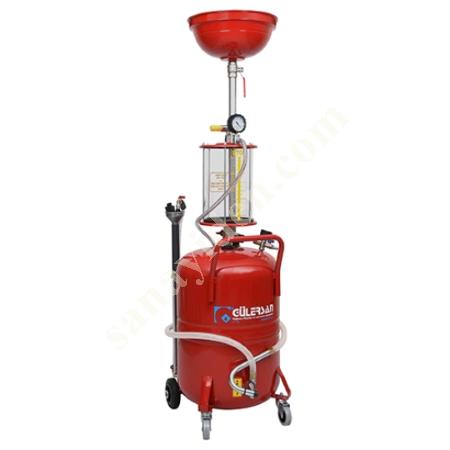

GÜLERSAN LUBRICATION EQUIPMENT 6560 AIR OPERATED WASTE OIL SUCTION CHANGER 60 LT

🔧 Technical Catalog Description
Why Choose the 6560 Air Operated Oil Extractor with Funnel?
The funnel-equipped oil suction machine easily extracts dirty oil into the glass chamber using air pressure. The amount of drained oil can be clearly monitored through the graduated scale on the glass. The device features a 9-liter glass chamber and a large 60-liter tank. Double-lipped seals at both the top and bottom of the glass section ensure leak-proof performance, while metal rods around the glass provide extra protection against impact.
Additionally, this vacuum-operated oil extractor works without requiring a continuous air connection. It offers excellent maneuverability thanks to two fixed and two swivel wheels. The product also comes with five oil suction probes in different diameters. The fill level of the tank can be easily tracked with the level gauge on the tank. Waste oil in the tank can be discharged with air pressure. The safety valve on the tank protects against excessive air pressure, ensuring safe use.
The ideal operating oil temperature is 70° – 80°C. The device must not be used with corrosive or flammable liquids. Lastly, with the telescopic funnel, you can raise the vehicle on a lift, remove the oil drain plug, and use it for gravity draining as well.

📘 User & Maintenance Manual

Technical Specifications

• Model: 6560

• Operation Type: Air Operated

• Working Temperature: 60 – 80 °C

• Operating Pressure: 6 – 8 Bar

• Discharge Pressure: 0.5 Bar

• Capacity: 60 + 9 Lt

• Hose Length: 1.5 m

• Hose Size: 10×16 mm

• Package Dimensions: 48 × 55 × 122 cm

• Weight: 30.6 kg

• Warranty: 36 Months

Delivery Contents

• Oil Suction Probe Set – 6095

• Waste Oil Drain Funnel – 7902
