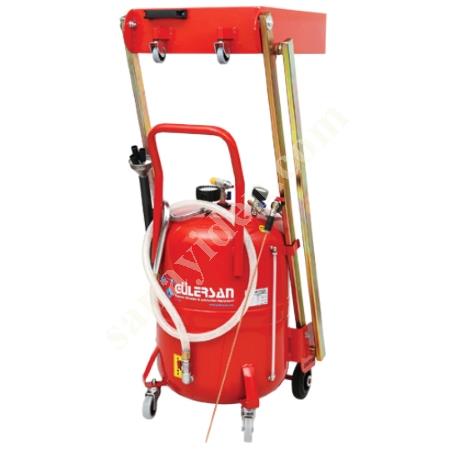

GÜLERSAN LUBRICATION EQUIPMENT 6640 WASTE OIL CHANGER EXTRACTOR WITH PANTOGRAPH 80 LT

🔧 Why Choose the 6640 Heavy-Duty Air-Operated Oil Suction Pump?

The 6640 model is a heavy-duty oil suction system designed especially for trucks, lorries, and construction equipment that are difficult to lift. Thanks to its trolley-type telescopic tray, you can easily collect dirty oil without needing a lift or inspection pit.

The machine collects used oil from the crankcase into an 80-liter tank with the help of air pressure. You can monitor the collected oil through the tank-level scale. It offers two tray capacity options: 20 liters and 40 liters—both designed for flexible workshop needs.

The pump operates without continuous air connection, thanks to its vacuum system. The two fixed and two swivel wheels provide excellent mobility. Used oil in the tank can be discharged with air pressure, and the safety valve protects the system from overpressure. The tray is equipped with a splash guard grid for clean and safe oil collection.

Additionally, the product includes the 6095 oil suction probe set, which enables you to extract oil directly from the top of the engine if needed.

⚠️ Not suitable for corrosive or flammable liquids.
✅ Recommended oil temperature: 70°C – 80°C

📘 User and Maintenance Manual

Technical Specifications

Model: 6640.20

• Operation Type: Pneumatic

• Working Temperature: 60 – 80 °C

• Operating Pressure: 6 – 8 Bar

• Discharge Pressure: 0.5 Bar

• Tank Capacity: 80 L

• Tray Capacity: 20 L

• Hose Length: 2 m

• Hose Size: 10 × 16 mm

• Package Dimensions: 57 × 67 × 127 cm

• Weight: 41.9 kg

• Warranty: 36 Months

Model: 6640.40

• Operation Type: Pneumatic

• Working Temperature: 60 – 80 °C

• Operating Pressure: 6 – 8 Bar

• Discharge Pressure: 0.5 Bar

• Tank Capacity: 80 L

• Tray Capacity: 40 L

• Hose Length: 2 m

• Hose Size: 10 × 16 mm

• Package Dimensions: 57 × 67 × 138 cm

• Weight: 44.3 kg

• Warranty: 36 Months

📦 Delivery Scope

• Oil Suction Probe Kit – 6095

•
