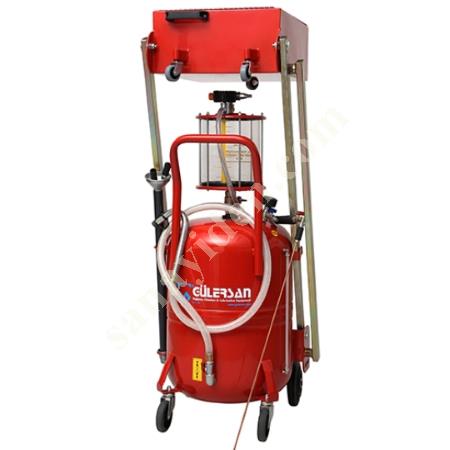

GÜLERSAN LUBRICATION EQUIPMENT 6650 WASTE OIL CHANGER EXTRACTOR WITH PANTOGRAPH 80 LT

🔧 Why Choose the 6650 Heavy-Duty Air-Operated Oil Suction Pump?

The 6650 model is a robust oil suction pump engineered for trucks, lorries, and heavy machinery where lifting the vehicle is challenging. It uses a trolley-type telescopic tray to easily collect used oil directly from the crankcase without the need for a lift or service pit.

With an 80 + 7 liter tank capacity, the device comes in two tray capacity variants: 20 liters and 40 liters. You can monitor the used oil amount with the help of the transparent scale on the tank. Thanks to its vacuum system, the pump operates without requiring a continuous air connection.

Featuring two fixed and two swivel wheels, the unit offers excellent maneuverability in workshops. The drainage of waste oil from the tank is carried out using air pressure. For safety, a pressure relief valve is integrated into the tank to protect against over-pressurization.

During operation, simply roll the telescopic tray arms under the vehicle, let the oil drain into the tray, and then transfer the oil to the tank using air pressure. The tray includes a protective grid to prevent splashing.

As part of the delivery, the 6095 oil suction probe set is included, allowing you to extract oil from the top of the engine if required.

⚠️ Not suitable for corrosive or flammable liquids.
✅ Recommended oil temperature: 70°C – 80°C

📘 User and Maintenance Manual

🔩 Technical Specifications

Model: 6650.20

• Operation Type: Pneumatic

• Working Temperature: 60 – 80 °C

• Operating Pressure: 6 – 8 Bar

• Discharge Pressure: 0.5 Bar

• Tank Capacity: 80 + 7 L

• Tray Capacity: 20 L

• Hose Length: 2 m

• Hose Size: 10 × 16 mm

• Package Dimensions: 57 × 67 × 127 cm

• Weight: 45.4 kg

• Warranty: 36 Months

Model: 6650.40

• Operation Type: Pneumatic

• Working Temperature: 60 – 80 °C

• Operating Pressure: 6 – 8 Bar

• Discharge Pressure: 0.5 Bar

• Tank Capacity: 80 + 7 L

• Tray Capacity: 40 L

• Hose Length: 2 m

• Hose Size: 10 × 16 mm

• Package Dimensions: 57 × 67 × 138 cm

• Weight: 47.8 kg

• Warranty: 36 Months

📦 Delivery Scope

• Oil Suction Probe Kit – 6095

•
